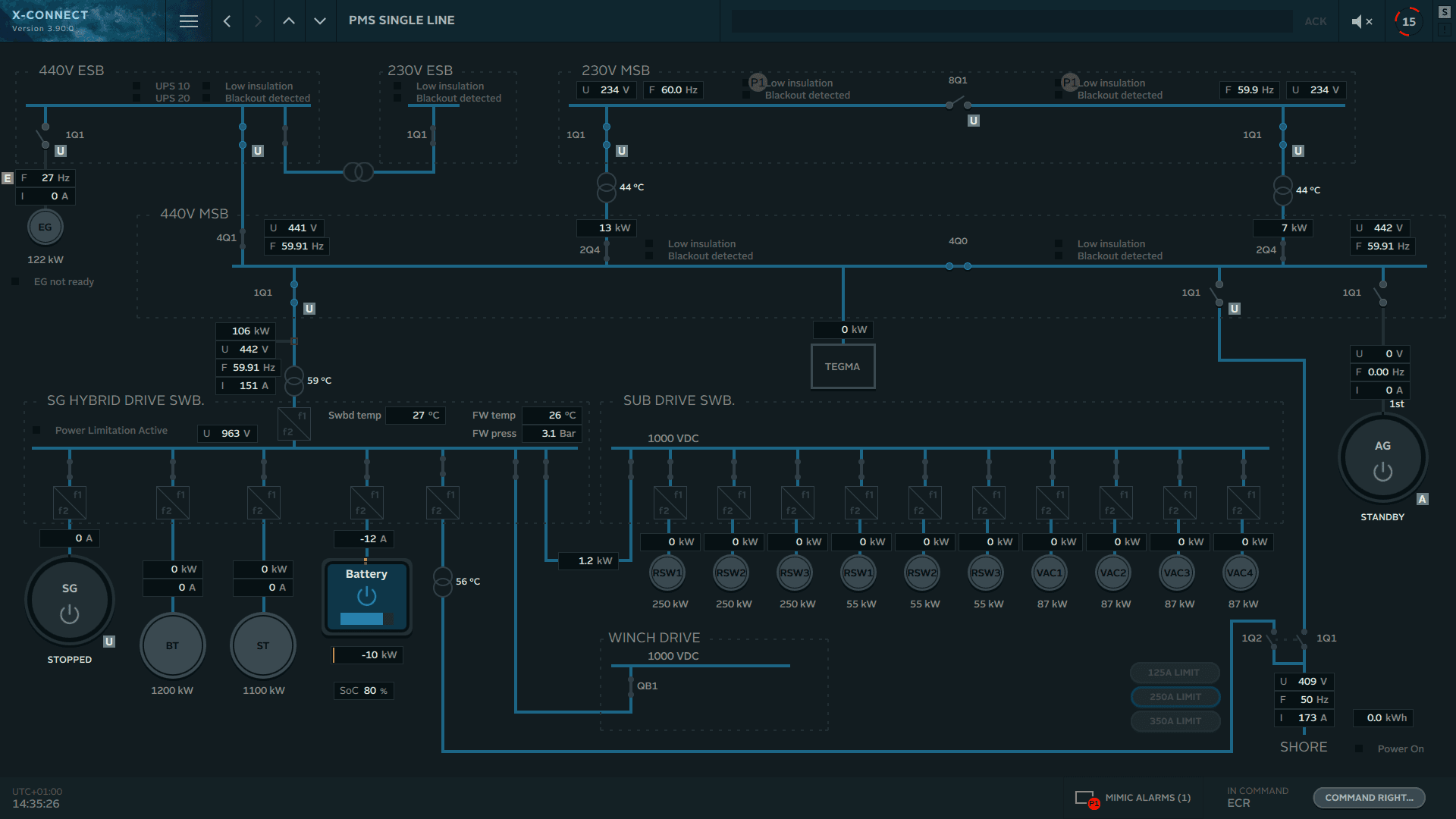

The Power Management System (PMS) gives you control over power generation and switchboard equipment, from basic to complex power plants. Built as a seamless part of the X‑CONNECT® platform, the crew manage power systems from a common X‑CONNECT® operator station.
1
Safe operations, high operability
The PMS monitors power balance continuously and handles fault scenarios automatically, including blackout prevention, detection and recovery. The system gives the crew instant feedback to support well-founded decisions in critical operations.
2
Increase efficiency without compromising safety
With automatic start/stop thresholds and load-dependent generator management your vessel runs with the most optimal power plant configuration. Adding an Energy Management System (EMS) will further contribute to operational efficiency by introducing control of energy storage systems.
3
Easy to operate
Change start sequences, load thresholds and generator priorities directly from the operator stations.
What is a Power Management System?
A Power Management System controls the power balance and power units in the vessel's power plant. The core task is to keep the vessel safe and operational at all times, and at the same enabling the crew to operate more efficiently.
PMS includes functionality such as generator start/stop commands and circuit breaker control to advanced load management and blackout handling. The system supports segmentation to meet both customer and regulatory requirements.
Features
Blackout prevention, detection and recovery
Continuous monitoring and automatic control to keep the vessel operational in all conditions.
Load sharing and load shedding
Distributes load across generators and sheds non-critical consumers when needed to prevent blackout.
Energy Management System
Introduces Energy Storage Systems (ESS) to the PMS introducing even more possibilities for efficient operations.
Heavy consumer start request
Coordinates high-demand equipment startups to prevent overload.
Load dependent start/stop
Atomatic start/stop of power producers based on actual power demand, to increase operational efficiency and reduce unnecessary running hours.
Power redundancy
Defines the minimum number of generators per switchboard segment required online for safe operation in any mode.
Mode selection
Operators switch between predefined operating modes directly from the interface, adapting the power setup to current operations.
Skew load monitoring
Detects and alerts on uneven load distribution across power producers.
Manual start/stop and generator priority
Full manual override and priority configuration available at all times.
